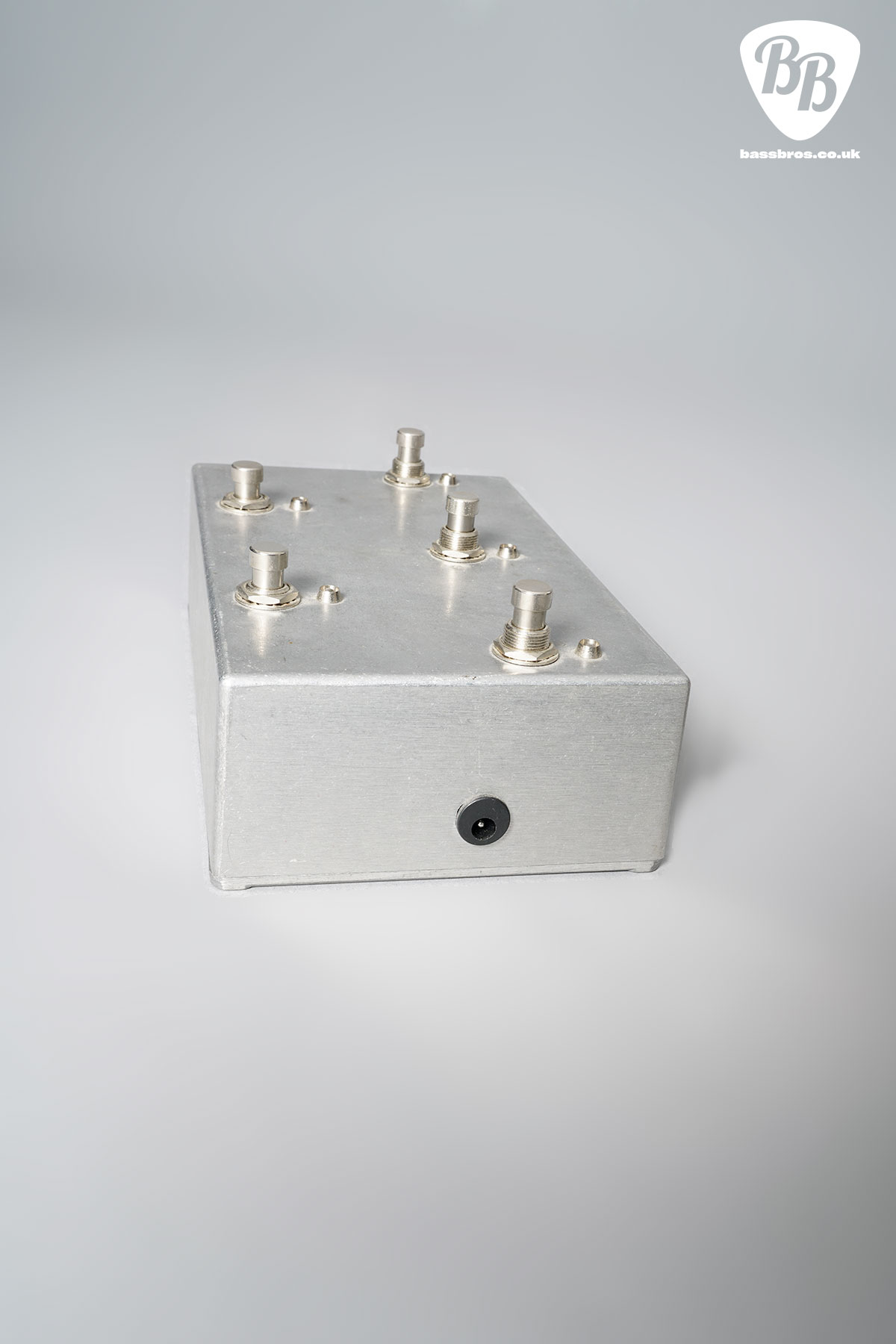

Buzz Electronics Programmable 5 Channel Looper

All 5 Switches can be programmed to engage any combination of the 5 loops (up to 5 pedals can be engaged at once).

Plug your chosen effect pedals into the SEND and RECEIVE sockets, then engage or disengage them using the footswitches. When one of the loops is ‘off’, your guitar sound is routed directly to your amp. When it is ‘on’, your signal is routed through the effects pedals.

For example

Switch 1 could be programmed to activate Loops 1, 3 & 4.
Switch 2 could be programmed to activate Loops 2, 3 & 5
Switch 3 could be programmed to activate Loops 3.
Switch 4 could be programmed to activate Loops 1,2,3,4 & 5.
etc….
Programming

Hold down the footswitch that you would like to program for 2-3 seconds and release.
Press the Loops that you would like to be activated by the switch you’re programming (The LEDs will indicate the pedals that you’ve selected).
Re-hold the initial footswitch for 3 seconds to finish.
This can be repeated for the 4 remaining footswitches.
Programmable vs On/Off Mode

Each switch can either be set to Programmable or On/Off mode. In programmable mode, the previously active switches disengage when a new switch is pressed. In On/Off mode, the previously active switches stay on when a new switch is pressed, allowing you to add to existing effects.

To toggle between Programmable and On/Off mode, hold your chosen switch down for 5+ seconds. The switch will flash fast for 3 seconds. You can mix and match between Programmable and On/Off modes. So for example: you could have 3 switches set to Programmable and 2 switches set to On/Off mode.

Master Bypass

Re-press the active switch to bypass all loops (In programmable mode)

Functions:
Add True Bypass to any effects pedal
All 5 pedals can be engaged at once.
Program any of the switches to activate any of the loops.
Clean up your tone.
The loops engage immediately when a switch is pressed.
Features:
5 Presets
5 Loops
True Bypass Circuitary
Suitable for Live use
Unrivaled Quality
Diecast Aluminium Enclosure
Compact Size (187x118x55mm)
Bright LEDs for indication
Chrome LED Bezels
3 Year Warranty
