Two Notes ReVolt Bass

The bass: It’s the bedrock of any performance, demanding nothing short of tonal excellence.

Enter ReVolt Bass, a forward-thinking all-analog 3-channel Amp Sim primed to serve as the beating-heart of your rig. The latest-iteration of Two notes’ critically- acclaimed Amp Sim solutions has been engineered with a singular mission: to empower players with the ultimate in foundation tone. Forget any preconceptions of a run-of-the-mill amp-in-a-box, preamp or DI: ReVolt Bass stands-apart. It’s inspired by a trio of iconic tones; It’s fuelled by 200V and genuine tube power; It’s born to assimilate into a myriad of usage scenarios; it gives you edge when you need it, thanks to an integrated Drive Channel Dry/Wet Blend.

Two notes’ getting it: Your Tone Matters. Why settle for anything short of perfection?

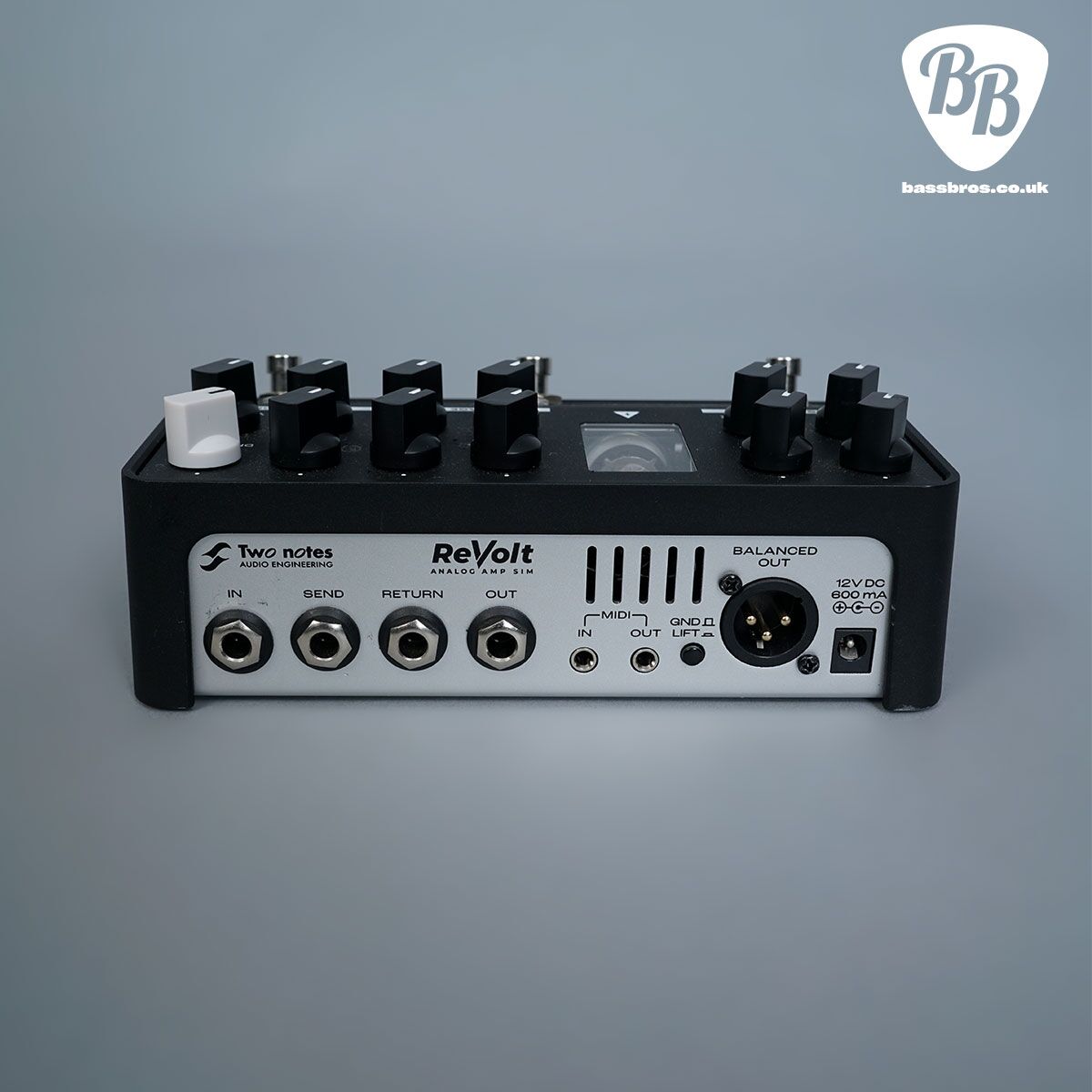

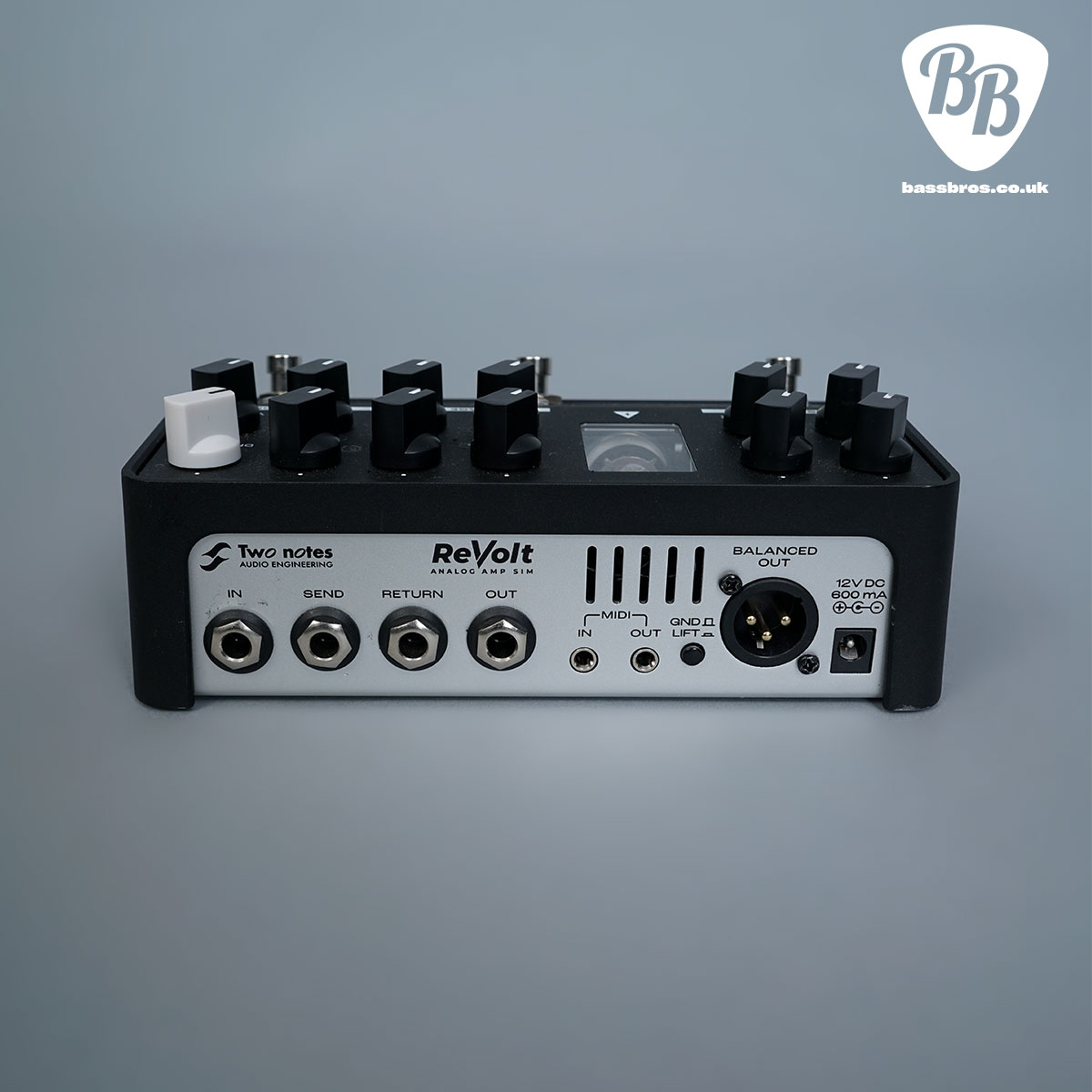

Input / Output
Input:
Jack 6.35 mm (1/4”) unbalanced (TS, Tip/Sleeve)
Impedance : 1 MOhms

Send:
Jack 6.35mm(1/4“) unbalanced (TS)
Max output level : +11dBu
Impedance : 300 Ohms

Return:
Jack 6.35mm(1/4“) unbalanced (TS)
Max input level : +11dBu
Impedance : 1 MOhms
Unbuffered, directly connected to Output when active

Output:
Jack 6.35 mm (1/4”) unbalanced (TS)
Max output level : +11 dBu
Impedance : 300 Ohms

DI Output:
XLR, balanced
Impedance : 600 Ohms balanced, 300 Ohms unbalanced
Max output level : +11dBu
Protected against +48V phantom power

MIDI:
MIDI In & Out / Thru
TRS Jack Type-A
Din-5 Pin converter cables included

Phones:
Jack 3.5 mm (1/8“) stereo (TRS, Tip/Ring/Sleeve)
Impedance : 39 Ohms

Aux In:
Jack 3.5 mm (1/8“) stereo (TRS, Tip/Ring/Sleeve)
Impedance : 10 kOhms

Preamp
Tube:
PSVANE ECC83

Power
Mains power adaptor:
DC Jack 2.1mm, negative center

Input voltage:
12V DC

Power consumption:
Approx. 6W

Current draw:
600mA

Dimensions & weight
Width x Depth x Height*:
19.2cm x 11.7cm x 7cm – 7.6″ x 4.6″ x 2.8″
*Including connectors and knobs

Weight:
845 g / 1.86 lbs
